제품 사양

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction worksÂ , Energy & Mining, Food & Beverage Shops

Gearing Arrangement: Worm

Output Torque: 2.6 to 660 N.m

Input Speed: 1400r/min

Output Speed: 14-280r/min

Material of housing: Aluminium Alloy

Material of gear: Cooper wheel

Material of shaft: 40Cr with carburizing and quenching

Gear Ratio: 7.5-100

Rated power: 0.1-4KW

Warranty: 12months

Input format: IEC flange, B5 or B15

Mounting Position: Horizontal (foot mounted) or Vertical (flange mounted)

OEM service: available

Application: packing machine, food process, lift, crane, agitator, feeder

기본 정보

결제 및 배송 조건

Packaging Details: Carton and Wooden Case

제품 설명

Product Description

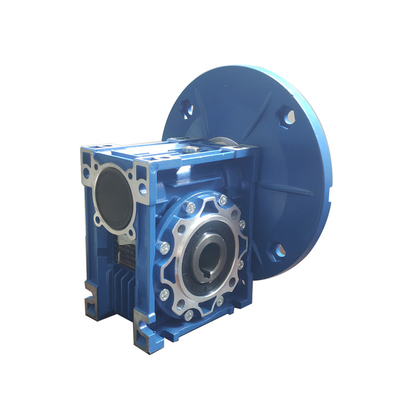

NMRV Worm gear box NMRV and NMRV POWER worm gear reducers currently represent the most advanced and economic solution to market requirements in terms of efficiency and flexibility.

Houshing:	Size up to 90 in die-cast aluminium alloy and over 110 in cast iron
Gearset:	bronze worm wheel, Worm-20CrMn Ti
shaft material:	Shaft-chromium steel-45#
Ratio:	1:7.5,10,15,20,25,30,40,50,60,80,100
Input Configurations:	Equipped with Electric Motors (AC Motor, Brake Motor, Explosion-proof Motor, Regulated Speed Motor, Hydraulic Motor)	56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,100B5, 100B14,112B5,112B14
Output Configurations:	Keyed Solid Shaft Output
Options:	protection cover, torque arm, output flange, output shaft kit
