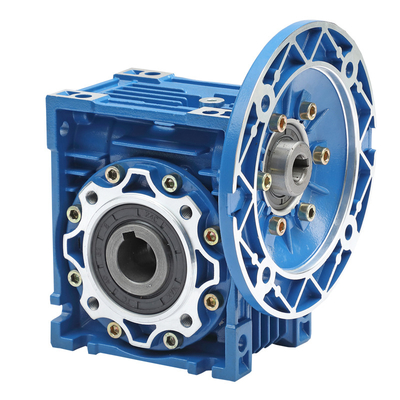

Type: | YNMRV 30-130 high output speed gearbox |
Model: | YNMRV030-130 |
Ratio: | 7.5,10,15,20,25,30,40,50,60,80,110 |
Color: | Blue / Silver White |
Material: | Housing-Casting iron-HT200# / Aluminium |
Worm Gear- Cooper-10-3 # | |
Worm-20CrMnTi with carburizing and quenching, surface hardness is 56-62HRC | |
Shaft-chromium steel-45# | |
Packing: | Paper carton,Plywood box / per set(With foam board inside) |
Bearing: | Brand "HRE" Bearing |
Seal: | NAK Seal from TAIWAN |
Warranty: | 1 year |
Input Power: | 0.55kw,0.75kw,1.1kw,1.5kw,2.2kw,4kw,5.5kw,7.5kw |
Usages: | In industrial machine: Food stuff,Ceramics,chemical, aswell as packing, printing, dyeing,woodworking, glass and plastics….. |
IEC Flange: | 80B5,90B5,100B5,112B5,132B5..... |
Lubricant: | Synthetic & Mineral |
