제품 사양

Warranty: 1 years

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Energy & Mining

Weight (KG): 5 KG

Customized support: OEM, ODM

Gearing Arrangement: Worm

Output Torque: 19-2745N.M

Input Speed: 1500

Output Speed: 25-150rpm

Cast Iron IEC Flange Mount Worm Gear Box: OEM is welcome

Color: Green,yellow or according to customer's requirments

기본 정보

결제 및 배송 조건

Packaging Details: Standard export package.

제품 설명

Product Description

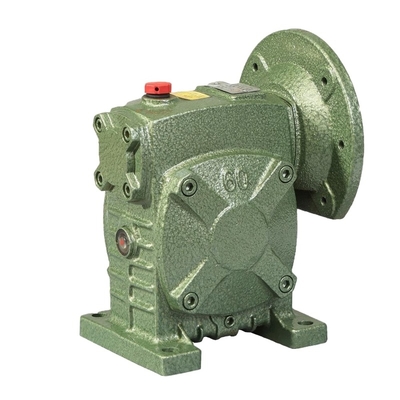

Type	WPWDKT Cast Iron IEC Flange Mount Worm Gear Box
Size	40-250
Ratio	10,15,20,25,30,40,50,60
Mounting Position	Foot mounted, flange mounted
Output Form	Solid shaft, hollow shaft
Material of Housing	Casting Iron
Material of Shaft	chromium steel
Oil seal	Tai Wan NAK
Bearing	REN BEN.CU

WPWDKT Cast Iron IEC Flange Mount Worm Gear Box specification ↑

We produce WP series and RV series worm speed reducer,Single ,double and universal speed reducer. 1.High quality, It adopts hard tooth gear with high accuracy 2.Large output torque,stable transmission with lower noise 3.High heat-radiating efficiency,elegant shape,durable service life

4.Suitable for omni-bearing installation 5.Low noise and smooth running 6.Worm drive uses hollow flank worm 7.High loading capacity, low in temperature rise and the long useful life 8.Few difference between transmission ratio rate, I = 6~13800 9.Compact structure, small size, convenient maintenance 10.Are based the unique modulation combination system, so its convenient for them to fit all types of motors or to connect with other power input. The same type of reducer can fit motors with different power, so that its possible for different types of machines to combine or connect. The gearboxes can be applied to many industrial area, such as Metallurgical, mines, lifting, transportation, petrochemical, construction, textile, pharmaceutical, food, environmental, light electric, plastic machine, paper, parking equipment and so on. Our technical engineers can choose model for you according to your Request, and we also can supply our factory catalogue for your reference.

Product Category

1.Q:What information should i tell you to confirm the worm gearbox?
A:Model/Size,B:Ratio and output torque, C:Powe and flange type,D:Shaft Direction,E:Housing color,F:Order quantity.

2.What type of payment methods do you accept?
A:T/T,B:B/L,C:CASH;

3.What's your warranty?
One year.

4.How to delivery?
A:By sea- Buyer appoints forwarder,or our sales team finds suitable forwarder for buyers.By air- Buyer offers collect express account,or our sales team fingds suitable express for buyers.(Mostly for sample) Other- We arrange to delivery goods to some place in China appointed by buyers.

5.Can you make OEM/ODM order?
Yes,we have rich experience on OEM/ODM order and like sign Non-disclosure Agreement before sample making;
