제품 사양

Applicable Industries: Building Material Shops, Machinery Repair Shops, Food & Beverage Factory

Weight (KG): 5 KG

Gearing Arrangement: Worm

Output Torque: 1.8-2430N.M

Input Speed: 1400RPM

Output Speed: 19-186.7RPM

Manufacturing method of gear: Cast gear

Toothed Portion Shape: Involute spur gear

Color: silver, blue, black and so on

keyword: gearbox WPA

기본 정보

결제 및 배송 조건

Packaging Details: inner pack: use plastic bag and foam box,gearbox WPA . outer pack: carton or wooden case per set or based on customer's request.

제품 설명

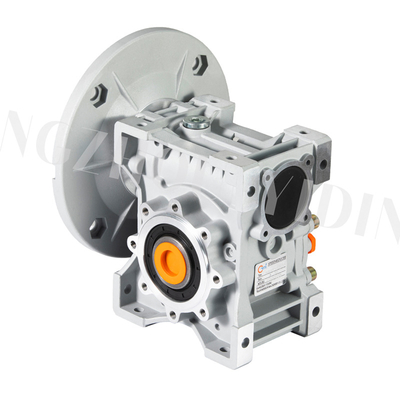

Product Description

Feature

1.Housing:Aluminium Alloy
2. low noise(<50DB)
3.Model:NMRV63,Ratio:10 to 100
4.Efficient and safe operating
5.ISO9001,Factory price,OEM
6.Technology Data:

Type:	NMRV
Model:	NMRV63
Ratio:	1:10,15,20,25,30,40,50,60
Color:	Blue/Silver Or On Customer Request
Material:	Housing: Die-Cast Iron cast
		Worm Gear-Copper-12-2#
		Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC
		Shaft-chromium steel-45#
Packing:	Carton and Wooden Case
Bearing:	C&U Bearing
Seal:	NAK OTHER
Warranty:	1 Year
Input Power:	0.06KW,0.09KW
Usages:	Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing, Woodworking,Glass.
IEC Flange:	56B14, 63B14, 63B5, 63B5, 71B14,80B14 AND SO ON
Lubricant:	Synthetic&Mineral

Product Category

1.Q:What information should i tell you to confirm the worm gearbox?
A:Model/Size,B:Ratio and output torque, C:Powe and flange type,D:Shaft Direction,E:Housing color,F:Order quantity.

2.What type of payment methods do you accept?
A:T/T,B:B/L,C:CASH;

3.What's your warranty?
One year.

4.How to delivery?
A:By sea- Buyer appoints forwarder,or our sales team finds suitable forwarder for buyers.By air- Buyer offers collect express account,or our sales team fingds suitable express for buyers.(Mostly for sample) Other- We arrange to delivery goods to some place in China appointed by buyers.

5.Can you make OEM/ODM order?
Yes,we have rich experience on OEM/ODM order and like sign Non-disclosure Agreement before sample making;
